Home  >  Century  >  Residential A/C & Heat Pumps  >  Heat Pumps  >  LE Series  >  VXP  > 60K HYPER HEAT HEAT PUMP

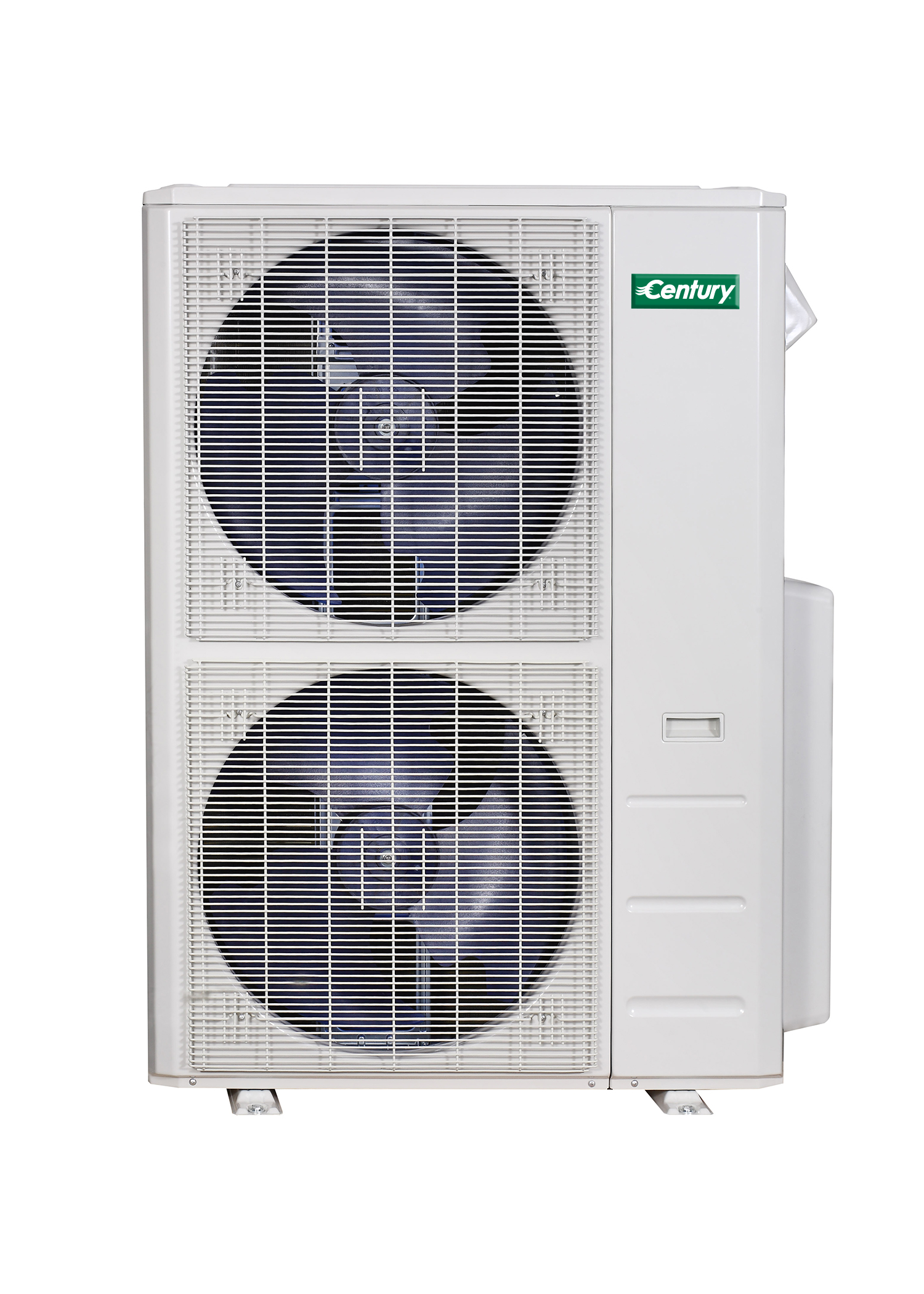

60K HYPER HEAT HEAT PUMP

208/230V 40A 16 SEER2
Coil Type Fin & Tube Capacity (Tons) 5 Refrigerant R-454B Voltage 208/230V-1-60 Compressor Inverter No. of Stages Inverter Max. Amps 40 Width (in.) 37.48 SEER2 (Min.) 16 RLA 31 Warranty 10 Years EER2 (Min.) 10 Circuit Breaker 40 HSPF2 (Min.) 9 Depth (in.) 16.34 Min. Circuit Ampacity 40 Cabinet Gloss enameled-steel finish Sound Rating (dBA) 65 Connection Size (in.) 3/8 - 7/8 Serviceability Easy access to electrical panels Shipping Wt (lbs) 275.13 Height (in.) 52.48 Matches See www.ahridirectory.org Test Listing UL US and Canada Certification AHRI 210/240 COP 47F HSPF/HSPF2 3.1 Factory Line-Set Charge (ft.) 25 COP 5F 1.8
Item #: A-VXP60SA-1-CY
60K HYPER HEAT
  • R454B Refrigerant
  • High-quality gold fin condenser coil for maximum heat transfer capacity
  • Side discharge directs hot air and sound away from living area and shrubbery
  • All units run tested
  • Side coil protection
  • Easy access to electrical panels
  • Traditionally styled vertical air handler with multi-position capabilities
  • Efficiencies as high as 19 SEER2
  • Units are capable of reducing noise during defrost
  • 3kW to 25kW in optional auxiliary heat kits
  • Integrated control with LED diagnostics
  • 24VAC thermostat-capable
  • All units UL US and Canada approved and AHRI Certified
  • Charged for 25 feet of interconnecting tubing
  • Heavy-duty inverter compressor
  • 10 year parts and compressor

    • Heat Pumps

    Coil Type
    Fin & Tube
    Capacity (Tons)
    5
    Refrigerant
    R-454B
    Voltage
    208/230V-1-60
    Compressor
    Inverter
    No. of Stages
    Inverter
    Max. Amps
    40
    Width (in.)
    37.48
    SEER2 (Min.)
    16
    RLA
    31
    Warranty
    10 Years
    EER2 (Min.)
    10
    Circuit Breaker
    40
    HSPF2 (Min.)
    9
    Depth (in.)
    16.34
    Min. Circuit Ampacity
    40
    Cabinet
    Gloss enameled-steel finish
    Sound Rating (dBA)
    65
    Connection Size (in.)
    3/8 - 7/8
    Serviceability
    Easy access to electrical panels
    Shipping Wt (lbs)
    275.13
    Height (in.)
    52.48
    Matches
    See www.ahridirectory.org
    Test Listing
    UL US and Canada
    Certification
    AHRI 210/240
    COP 47F HSPF/HSPF2
    3.1
    Factory Line-Set Charge (ft.)
    25
    COP 5F
    1.8
